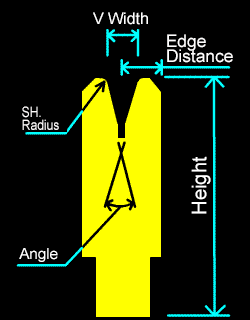

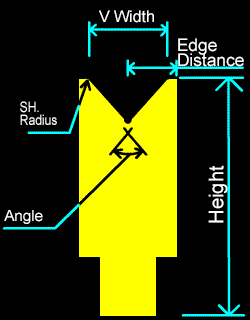

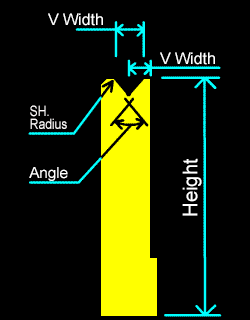

AFH Dies (H=60 Angle 86° 88° 90° 30°)
FELNo. | Product | Angle | V Width |
SH. Radius |
Die Edge Distance | CATNo. | Length | Image | |
1 | 984062 | AFH |
86 | 4 | 1.0 | 3 | A84061 A84561 A84062 A84762 A84861 |
L:835 M:510 S:415 SS:200 Sect:370 |
|
2 | 998408 | 88 | 4 | 1.0 | 3 | A84081 A84581 A84782 A84881 |
L:835 M:510 SS:200 Sect:370 |
||
3 | 984092 | 90 | 4 | 1.0 | 3 | A84091 A84591 A84092 A84792 A84891 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
4 | 985062 | 86 | 5 | 1.0 | 3.5 | A85061 A85561 A85062 A85762 A85861 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
5 | 998508 | 88 | 5 | 1.0 | 3.5 | A85081 A85581 A85782 A85881 |
L:835 M:510 SS:200 Sect:370 |
||
6 | 985092 | 90 | 5 | 1.0 | 3.5 | A85091 A85591 A85092 A85792 A85891 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
7 | 970062 | 86 | 6 | 1.5 | 4 | A70061 A70561 A70062 A70762 A70861 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
8 | 997008 | 88 | 6 | 1.5 | 4 | A70081 A70581 A70782 A70881 |
L:835 M:510 SS:200 Sect:370 |
||
9 | 970092 | 90 | 6 | 1.5 | 4 | A70091 A70591 A70092 A70792 A70891 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
10 | 986062 | 86 | 7 | 1.5 | 4.5 | A86061 A86561 A86062 A86762 A86861 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
11 | 986092 | 90 | 7 | 1.5 | 4.5 | A86091 A86591 A86092 A86792 A86891 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
12 | 971062 | 86 | 8 | 1.5 | 5 | A71061 A71561 A71062 A71762 A71861 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
13 | 997108 | 88 | 8 | 1.5 | 5 | A71081 A71581 A71782 A71881 |
L:835 M:510 SS:200 Sect:370 |
||
14 | 971092 | 90 | 8 | 1.5 | 5 | A71091 A71591 A71092 A71792 A71891 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
15 | 972062 | 86 | 10 | 2.0 | 6.5 | A72061 A72561 A72062 A72762 A72861 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
16 | 997208 | 88 | 10 | 2.0 | 6.5 | A72081 A72581 A72782 A72881 |
L:835 M:510 SS:200 Sect:370 |
||
17 | 972092 | 90 | 10 | 2.0 | 6.5 | A72091 A72591 A72092 A72792 A72891 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
18 | 974062 | 86 | 12 | 2.5 | 7.5 | A74061 A74561 A74062 A74762 A74861 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
19 | 997408 | 88 | 12 | 2.5 | 7.5 | A74081 A74581 A74782 A74881 |
L:835 M:510 SS:200 Sect:370 |
||
20 | 974092 | 90 | 12 | 2.5 | 7.5 | A74091 A74591 A74092 A74792 A74891 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
21 | 976062 | 86 | 14 | 2.5 | 8.5 | A76061 A76561 A76062 A76762 A76861 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
22 | 997608 | 88 | 14 | 2.5 | 8.5 | A76081 A76581 A76782 A76881 |
L:835 M:510 SS:200 Sect:370 |
||
23 | 977061 | 86 | 16 | 2.5 | 10 | A77061 A77561 A77062 A77762 A77861 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
24 | 977068 | 88 | 16 | 2.5 | 10 | A77081 A77581 A77782 A77881 |
L:835 M:510 SS:200 Sect:370 |
||
25 | 978061 | 86 | 18 | 2.5 | 11 | A78061 A78561 A78062 A78762 A78861 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
26 | 978068 | 88 | 18 | 2.5 | 11 | A78081 A78581 A78782 A78881 |
L:835 M:510 SS:200 Sect:370 |
||
27 | 979061 | 86 | 20 | 3.0 | 12.2 | A79061 A79561 A79062 A79762 A79861 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
28 | 979068 | 88 | 20 | 3.0 | 12.2 | A79081 A79581 A79782 A79881 |
L:835 M:510 SS:200 Sect:370 |
||
29 | 982061 | 86 | 25 | 3.0 | 14.75 | A82061 A82561 A82062 A82762 A82861 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
30 | 982068 | 88 | 25 | 3.0 | 14.75 | A82081 A82581 A82782 A82881 |
L:835 M:510 SS:200 Sect:370 |
||
31 | 984031 | AFH |
30 | 4 | 1.0 | 7 | A84031 A84531 A84032 A84732 A84831 |
L:835 M:510 S:415 SS:200 Sect:370 |
|
32 | 970031 | 30 | 6 | 1.0 | 8.5 | A70031 A70531 A70032 A70732 A70831 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
33 | 971031 | 30 | 8 | 1.5 | 10 | A71031 A71531 A71032 A71732 A71831 |
L:835 M:510 S:415 SS:200 Sect:370 |
||
34 | 974031 | 30 | 12 | 2.5 | 15 | A74031 A74531 A74032 A74732 A74831 |
L:835 M:510 S:415 SS:200 Sect:370 |
