- AX 1V Die for Heavy Gauge Materials (H=60 Angle84°)
AX 1V Die for Heavy Gauge Materials (H=60 Angle 84°)
| FELNo. | Product | Angle | V Width |
SH. Radius |
Die Edge Distance | Height | CATNo. | Length | Image | |

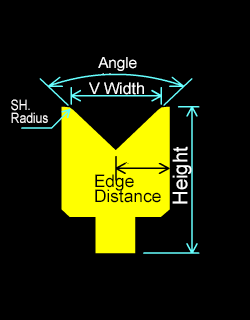

| 1 | 991001 | 1V | 84 | 32 | 4 | 19 | 60 | 087041 087541 087742 087841 |
Ｌ:835 M:510 SS:200 Sect:365 |
 |

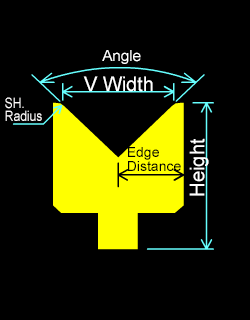

| 2 | 991002 | 1V | 84 | 40 | 4 | 23 | 60 | 088041 088541 088742 088841 |
Ｌ:835 M:510 SS:200 Sect:365 |
 |
