Sash 1V Dies for Robot H=60

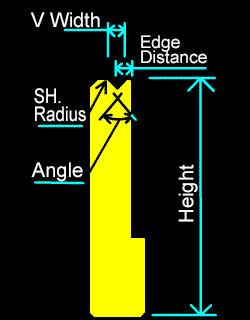

FELNo. | Product | Angle | V Width | SH. Radius | Die Edge Distance | CATNo. | Image | |
1 | 25939 | Sash 1V Die for Robot H=60 |
88 | 4 | 1.0 | 3 | AT4881 AT4882 AB4881 |
|
2 | 25999 | 90 | 4 | 1.0 | 3 | AT4901 AT4902 AB4901 |
||
3 | 55520 | 88 | 5 | 1.0 | 3.5 | AT5881 AT5882 AB5881 |
||
4 | 55219 | 90 | 5 | 1.0 | 3.5 | AT5901 AT5902 AB5901 |
||
5 | 25949 | 88 | 6 | 1.5 | 4 | AT6881 AT6882 AB6881 |
||
6 | 26019 | 90 | 6 | 1.5 | 4 | AT6901 AT6902 AB6901 |
||
7 | 55540 | 88 | 7 | 1.5 | 4.5 | AT7881 AT7882 AB7881 |
||
8 | 55419 | 90 | 7 | 1.5 | 4.5 | AT7901 AT7902 AB7901 |
||
9 | 25959 | 88 | 8 | 1.5 | 5 | AT8881 AT8882 AB8881 |
||
10 | 26029 | 90 | 8 | 1.5 | 5 | AT8901 AT8902 AB8901 |
||
11 | 25969 | 88 | 10 | 2.0 | 6.5 | AT1081 AT1082 AB1081 |
||
12 | 26039 | 90 | 10 | 2.0 | 6.5 | AT1091 AT1092 AB1091 |
||
13 | 25979 | 88 | 12 | 2.5 | 7.5 | AT1281 AT1282 AB1281 |
||
14 | 26049 | 90 | 12 | 2.5 | 7.5 | AT1291 AT1292 AB1291 |
||
15 | 25989 | 88 | 14 | 2.5 | 7.5 | AT1481 AT1482 AB1481 |
||
16 | 26059 | 90 | 14 | 2.5 | 7.5 | AT1491 AT1492 AB1491 |
