This FEL data is not for V-bending. ( Value "D" can not be calculated.) Therefore, please download the data after reading the following notice carefully.
>Use "Direct Data" mode.
("3D Data"/"Shape Data"/"Angle Data" are Not Available.)

*Direct Data: Input values "L" and "D" on "Run Display" or "Prog Display" through from "Bend Process Display/Tool Select Display"

Not possible to calculate D value (Except V bend type tool)
Radius Bend 3U Die Offset Tool Hemming Wing Bend
Radius Bend 3U Die Offset Tool Hemming ウイングベンド

Download

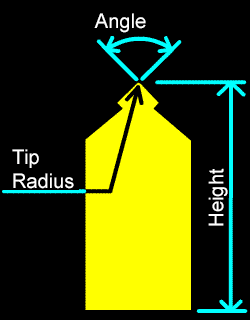

  FELNo. Product Angle Radius Height CATNo. Image
1 25899 Punches for
attachment to
the bottom
88 0.6 60 A60881
A60882
AB6881
2 25909 90 0.2 60 A60901
A60902
AB6901
3 59002 88 0.2 60
4 55800 88 0.6 30
5 58002 88 0.2 30
6 58092 90 0.2 30
